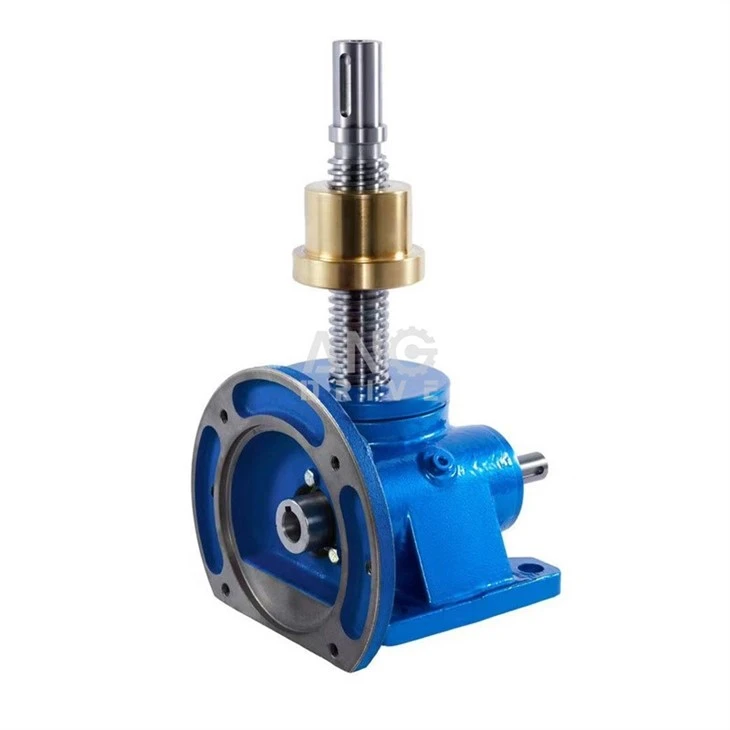

Ntsia Hlau Jack
1. Cov ntsia hlau jack yog ib qho kev sib xyaw ua ke ntawm ib khub turbine thiab ib qho trapezoid ntsia hlau pas nrig kom tiav qhov nqa thiab txo cov khoom. Nws muaj cov yam ntxwv ntawm cov qauv compact, lub teeb yuag, kev nyab xeeb thiab kev ntseeg tau, lub neej ntev kev pab cuam, yooj yim installation, thiab lwm yam., thiab muaj ib tug self-locking muaj nuj nqi nyob rau hauv lub xeev zoo li qub.
2. Haum rau kev thauj khoom hnyav, tsis tshua muaj ceev, thiab tsis tshua muaj zaus;
3. Cov khoom tseem ceeb: precision trapezoid ntsia hlau khub thiab siab precision cab iav khub;
4. Kev tsim qauv tsim, ntim me me, lub teeb yuag, qhov chaw tsav dav, tsis tshua muaj suab nrov, ua haujlwm yooj yim, thiab kev saib xyuas yooj yim.
● Dawb los ntawm cov roj to
● Kev ua haujlwm siab dua
● Tsawg suab nrov
● Ntau tus nqi tsim nyog thiab kev sib tw
● Zoo heev
● Precise processing
● Kev kho cua sov kom muaj zog
● Muaj peev xwm ua haujlwm nrog cov khoom hnyav
● Involute hniav profile
● Archimedes hniav profile
● 100% kev xeem khiav
● Kev kuaj xyuas roj
● Tshawb xyuas suab nrov
● Vibration test
Txiv ntseej lifting hom Screw Jack
Bolt qhov hom Screw Jack
T-coping hom Screw Jack
Round phaj hom Screw Jack
Flange input Screw Jack nrog lub cev muaj zog
Ncej kawg tsau hom Screw Jack
|
Hom |
Qauv |
Ntsia hlau loj |
Max nqa lub zog kN kev |
Max zog zog kN kev |
Nyhav tsis mob stroke kg |
Ntsia hlau hnyav rau 100 mm |
|
SWB
Ntsia hlau jack
|
SWB 2.5 |
30 * 6 |
25 |
25 |
7.3 |
0.45 |
|
SWV 5 |
40 * 7 |
50 |
50 |
16.2 |
0.82 |
|
|
NWS 10/15 |
58 * 12 |
100/150 |
99 |
25 |
1.67 |
|
|
SWV 20 |
65 * 12 |
200 |
166 |
36 |
2.15 |
|
|
SWV 25 |
Loj: 90 * 16 |
250 |
250 |
70.5 |
4.15 |
|
|
SWV 35 |
Loj: 100 * 18 |
350 |
350 |
87 |
5.20 |
|
|
SWV 50 |
Loj: 120 * 20 |
500 |
500 |
420 |
7.45 |
|
|
SWB 100 |
Loj: 160 * 23 |
1000 |
1000 |
1010 |
13.6 |
|
|
SWB 120 |
Loj: 180 * 25 |
1200 |
1200 |
1350 |
17.3 |
Catolog ntawm Screw Jack
Daim ntawv thov ntawm Screw Jack
Ntau cov khoom thiab cov ntaub ntawv
Cov nplooj ntawv khoom tsuas yog ib feem ntawm peb cov khoom, yog tias koj tsis pom cov khoom tsim nyog, thov hu rau peb cov neeg ua haujlwm muag rau kev sab laj.
