Me Gearbox

Tus nqi zoo, xa khoom sai, kev pabcuam raws sijhawm -- ANG yog koj tus neeg muag khoom txhim khu kev qha ntawm lub thawv me me uas tsis muaj roj to, tsis tshua muaj suab nrov, tsis tshua muaj kub nce, lub neej ua haujlwm ntev, thiab lwm yam.

Xa kev nug

Khoom Taw qhia

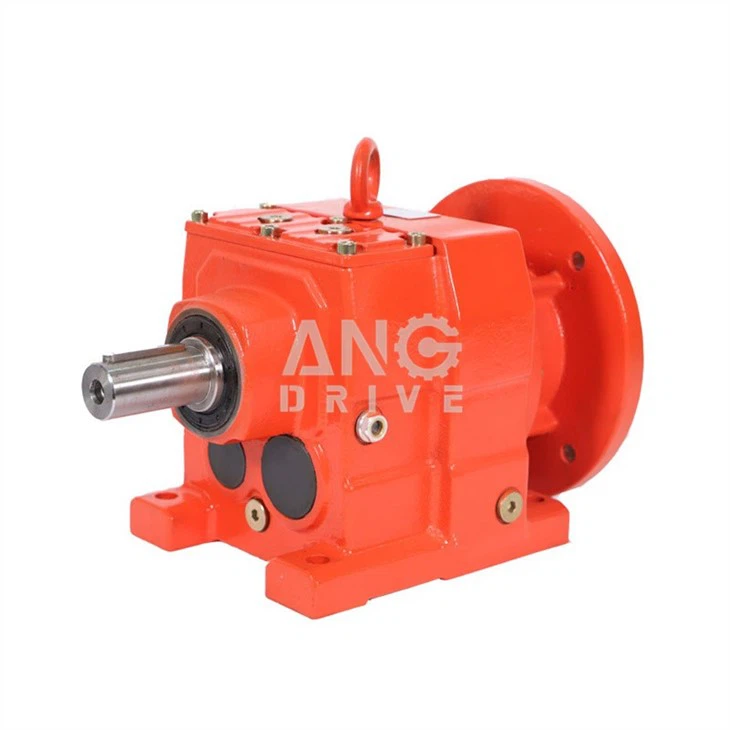

Hom gearbox me: Ib theem helical gearbox

Khoom nta

▲ Modular tsim, dismountable ncej ko taw, xaiv qhov sib txawv thav duab loj thiab flanges

▲ Aluminium vaj tse, compact qauv, lub teeb yuag

▲ Carburizing thiab sib tsoo hardened iav, ruaj khov thiab ruaj khov

▲ Ntau txoj haujlwm mounting

▲ Compact qauv, tsis tshua muaj suab nrov

Khoom Specification

ANG Ib Theem Helical Me Gearbox
Qauv	RC (ko taw-mounted): RC01, RC02, RC03, RC04 RCF (B5 Flange-mounted): RCF01, RCF02, RCF03, RCF04 RCZ (B14 Flange-mounted): RCZ01, RCZ02, RCZ03, RCZ04
Input zog	0.12kW ~ 4kW
Input ceev	750rpm ~ 3000rpm
Kev txo qis	1/3.66 ~ 1/54
Torque	120N.m ~ 500N.m
Hom tswv yim	Hollow Ncej nrog IEC Tsav Flange Khoom Ncej Input Lub cev muaj zog
Input lub cev muaj zog	IEC-normalized Motors, Brake Motors Explosion-proof Motors Inverter Motors, Servo Tsav
Cov zis hom	Khoom Ncej nrog B5 tso zis Flange Khoom Ncej nrog B14 Output Flange
Khoom siv tsev	Aluminium Alloys
Precision ntawm iav	Kev sib tsoo kom raug, chav kawm 6
Kev kho cua sov	Carburizing thiab quenching
Gears	Hardened Helical iav

GEARBOX XOV XWM
RC 01.				n1=1400r/min				120 Nm
n2	M2 max	Fr2	i	Loj	63B5	71B5/B14	80B5/B14	90B5/B14
[r/min]	[Nm]	[N]	i	Loj	63B5	71B5/B14	80B5/B14	90B5/B14
26	120	2600	53.33	160/3
31	120	2600	45.89	413/9
35	120	2600	40.10	3248/81
39	120	2560	35.47	532/15
49	120	2380	28.50	770/27
59	120	2230	23.56	212/9
71	120	2100	19.83	119/6
78	90	2030	17.86	1357/76
96	120	1900	14.62	658/45
101	90	1860	13.80*	69/5
118	120	1770	11.90	2464/207
143	120	1660	9.81	1148/117
153	80	1630	9.17	1219/133
181	80	1540	7.72	1173/152
246	70	1390	5.69	1081/190
302	70	1290	4.63	88/19
366	70	1210	3.82	943/247
RC02 ua.				n1=1400r/min				200 Nm
n2	M2 max	Fr2	i	Loj	63B5	71B5/B14	80B5/B14	90B5/B14
[r/min]	[Nm]	[N]	i	Loj	63B5	71B5/B14	80B5/B14	90B5/B14
26	200	4500	54.00*	54/1
30	200	4500	46.46*	3717/80
34	200	4500	40.60*	203/5
39	200	4270	35.91*	3591/100
48	200	3970	28.88*	231/8
59	200	3730	23.85*	477/20
70	200	3520	20.08*	3213/160
82	140	3330	17.10	3009/176
95	200	3180	14.81*	2961/200
106	140	3060	13.21	2907/220
116	200	2970	12.05	1386/115
141	200	2780	9.93	2583/260
159	120	2670	8.78	2703/308
189	120	2520	7.39	2601/352
257	100	2280	5.45	2397/440
316	100	2120	4.43	102/23
383	80	1990	3.66	2091/572
RC03 ua.				n1=1400r/min					300 Nm
n2	M2 max	Fr2	i	Loj	71B5/B14	80B5/B14	90B5/B14	100B5/B14	112B5/B14
[r/min]	[Nm]	[N]	i	Loj	71B5/B14	80B5/B14	90B5/B14	100B5/B14	112B5/B14
24	300	6000	58.09	639/11
28	300	6000	50.02	2201/44
32	300	6000	43.75	4331/99
36	300	6000	38.73	426/11
40	300	5860	34.62	4189/121
49	300	5480	28.30	4047/143
64	280	5020	21.78	1917/88
81	280	4660	17.33	3621/209
93	260	4440	15.06	497/33
113	260	4160	12.37	1633/132
136	240	3910	10.28	3053/297
177	180	3590	7.93	1269/160
222	180	3320	6.31	2397/380
255	150	3170	5.48	329/60
311	150	2970	4.50	1081/240
374	150	2790	3.74	2021/540
RC04 ua.				n1=1400r/min				500 Nm
n2	M2 max	Fr2	i	Loj	80B5/B14	90B5/B14	100B5/B14	112B5/B14
[r/min]	[Nm]	[N]	i	Loj	80B5/B14	90B5/B14	100B5/B14	112B5/B14
24	500	8000	58.09	639/11
28	500	8000	50.02	2201/44
32	500	8000	43.75	4331/99
36	500	8000	38.73	426/11
40	500	7950	34.62	4189/121
49	500	7430	28.30	4047/143
64	480	6810	21.78	1917/88
81	480	6310	17.33	3621/209
93	460	6020	15.06	497/33
113	460	5640	12.37	1633/132
136	440	5300	10.28	3053/297
177	260	4860	7.93	1269/160
222	260	4510	6.31	2397/380
255	230	4300	5.48	329/60
311	230	4030	4.50	1081/240
374	200	3780	3.74	2021/540

Vim li cas koj xaiv peb lub thawv me me?

Hangzhou ANG Drive Co., Ltd.

Qhov zoo

● Dawb los ntawm cov roj to

● Kev ua haujlwm siab dua

● Tsawg suab nrov

● Siab torque

● Tus nqi qis

● Kev siv hluav taws xob tsawg

● Precision kis tau tus mob

● Export zoo

Gears

● High precision qib 6

● Carburizing kom muaj zog

● Muaj peev xwm ua haujlwm nrog lub nra hnyav

● High hardness, ruaj khov ua haujlwm

● Nto carburizing, precision sib tsoo

Hangzhou ANG Drive Co., Ltd.

Hangzhou ANG Drive Co Ltd

Kev tshuaj xyuas

● 100% kev xeem khiav

● Kev kuaj xyuas roj

● Tshawb xyuas suab nrov

● Kev kuaj kev vibration

● Kev kuaj airtightness

Tsev

● Aluminium alloy high-strength khoom

● Trinity ua ntawm txhua sab

● Concentricity yog guaranteed

small gearbox

FAQ

Q: Koj puas tuaj yeem ua tus me me gearbox nrog customization?
A: Yog, peb tuaj yeem hloov kho raws li koj qhov kev thov, xws li flange, ncej, teeb tsa, khoom siv, thiab lwm yam.

Q: Koj puas muab cov qauv?
A: Yog. Ib qho qauv muaj rau kev sim.

Q: Koj tus MOQ yog dab tsi?
A: Nws yog 10pcs rau qhov pib ntawm peb lub lag luam.

Q: Koj lub sijhawm ua haujlwm yog dab tsi?
A: Cov khoom lag luam txheem xav tau 5-30hnub, ntev me ntsis rau cov khoom lag luam customized.

Q: Koj puas muab kev pabcuam?
A: Yog. Peb lub tuam txhab muaj pab neeg tsim thiab txhim kho, peb tuaj yeem muab kev txhawb nqa yog tias koj
xav tau.

Q: Yuav nkoj li cas rau peb?
A: Nws muaj nyob rau hauv huab cua, los yog hiav txwv, los yog los ntawm tsheb ciav hlau.

Q: Yuav them nyiaj li cas?
A: T / T thiab L / C yog qhov nyiam, nrog rau cov nyiaj sib txawv, suav nrog USD, EUR, RMB, thiab lwm yam.

Q: Kuv tuaj yeem paub tias cov khoom tsim nyog rau kuv li cas?
A: >1ST confirm drawing and specification >2nd test sample >3rd pib loj ntau lawm.

Q: Kuv tuaj yeem tuaj rau koj lub tuam txhab tuaj xyuas?
A: Yog, koj tuaj yeem tuaj xyuas peb txhua lub sijhawm.

Q: Peb yuav tiv tauj koj li cas?
A: Koj tuaj yeem xa cov lus nug ncaj qha, thiab peb yuav teb tsis pub dhau 24 teev.
