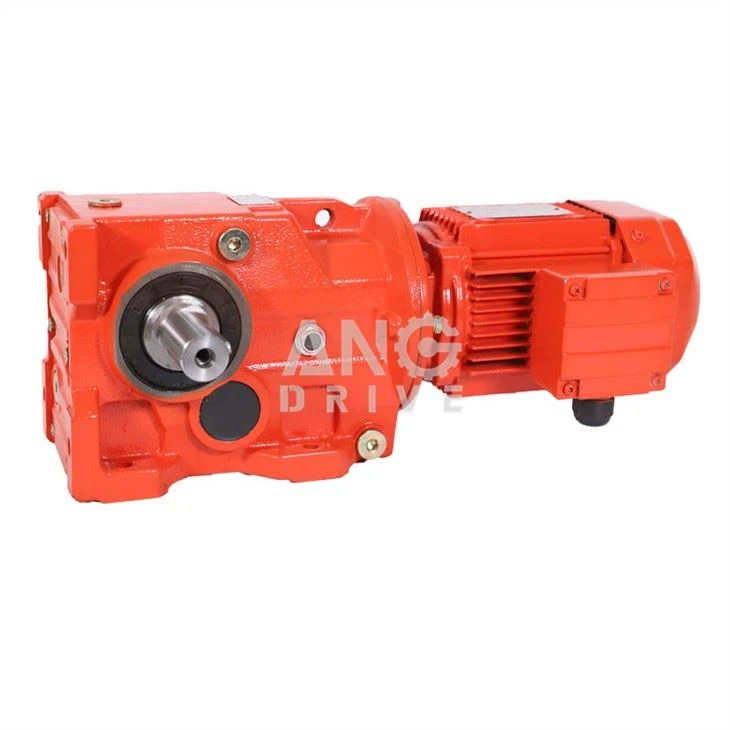

Bevel iav reducer

Ua haujlwm ntawm bevel iav reducer
Bevel lub zog yog siv los xa cov lus qhia thiab lub zog nruab nrab ntawm kev sib tshuam cov duab, nrog cov hniav hniav tau faib rau saum npoo ntawm lub khob hliav qab. Thaum Bevel iav kis, lub taus ntawm ob lub zog sib tshuam ntawm ib qho kev sib tshuam, feem ntau {0}} degree kaum sab xis, txawm hais tias lwm cov ces kaum kuj tseem tuaj yeem siv.
Zoo ib yam li helical zog, bevel encensive maj thaum ua haujlwm, nrog cov hniav maj tau los rau hauv thiab tawm ntawm kev sib cuag. Tshwj xeeb, helical bevel lub zog zog thiab kauv bevel lub zog muab qhov khoom siv smoother thiab ntau dua.
Los ntawm kho cov iav piv ntawm bevel lub zog, ib qho kev sib kis tau sib kis tau yooj yim, hloov chaw ntawm qee qhov nrawm ntawm kev kis tau los yog mus rau sab nraud thauj khoom.

Txo cov ntsiab lus
Lub helical bevel iav txo cov neeg muaj zog feem ntau txuas txuas lub cev muaj zog tso rau hauv cov khoom siv helical lossis bevel. Lub siab-ceev sib hloov lub zog los ntawm lub cev muaj zog pauv mus rau cov iav lossis bevel iav.
Los ntawm kev sib xyaw ntawm ntau-pawg helical los yog bevel zog, txoj kev sib hloov tig yog maj mam txo los ntawm kev sib koom tes ntawm cov kis las ntawm cov hniav. Raws li txoj cai ntawm kev txuag lub zog, raws li qhov nrawm zuj zus, ua tiav txoj haujlwm ntawm kev txo qis thiab torque sib npaug. Qhov txo thiab lub zog loj-txhim kho yog tom qab kis tau los ntawm cov zis ncej mus rau sab nraud thauj kom tau raws li lub zog ntawm cov khoom siv sib txawv.



Bevel Iav Reducer Nqe Lus Qhia

K series helical bevel geared lub cev muaj zog yog tsim raws cov qauv, uas coj ntau hom sib xyaw ua ke, cov hom kev sib txuas, thiab qauv tsim. Cov ncauj lus kom ntxaws kev faib tawm ntawm cov kev sib piv tuaj yeem ua tau raws li cov haujlwm ua haujlwm ntau yam.



Bevel iav Reducer nta:

1. Cov qauv compact, cov qauv tsim qauv

2. Kev sib kis tau zoo nce mus txog 96%

3. Cov sib txawv txo cov piv txwv tso cai

4. Cov khoom sib txawv tsav tsheb tau tso cai







Kev tsimCov Lus Qhia Tshwj Xeeb:



Tus qauv	Tso zis Ncej Dia. (hli)		Hwjchim	Feem tsawg	Max. Torque
	NRES NCEJ	Hollow ncej	(kw)	(i)	(NM)
K37	25mm	30mm	0.18~3.0	5.36~106.38	200
K47	30mm	35 hli	0.18~3.0	5.81~131.87	400
K57	35 hli	40 hli	0.18~5.5	6.57~145.15	600
K67	40 hli	40 hli	0.18~5.5	7.14~144.79	820
K77	50 hli	50 hli	0.37~11	7.22~192.18	1550
K87	60mm	60mm	0.75~22	7.19~197.27	2700
K97	70 hli	70 hli	1.3~30	8.95~175.47	4300
K107	90 hli	90 hli	3~45	8.74~141.93	8000
K127	110 hli	100 hli	7.5~90	8.68~146.07	13000
K157	120mm	120mm	11~160	12.66~150.03	18000
K167	160 hli	140 hli	11~200	17.35~164.44	32000
K187	190 hli	160 hli	18.5~200	17.97~178.37	50000







Vim li cas thiaj xaiv peb?



Cov duab khoom







Chaw



Raug Thov

JRTK37 / JRTK47 / JRTK67 / JRTK77 / JRTK97 / JRTK16 / JRTK187 / JRTKA157 / JRTKA167 / JRTKA167 / JRTKA187 / JR TKF37 / JRTKF47 / JRTKF57 / JRTKF67 / JRTKF77 / JRTKF87 / JRTKF97 / JRTKF107 / JRTKF127 / JRTKF157 / JRTKAF37 / JRTKAF47 / JRTKAF67 / JRTKAF77 / JRTKAF87 / JRTKAF 107 / JRTKAF127

TK37 / TK47 / TK57 / TK67 / TK77 / TK87 / tk107 / tk107 / tk157 / tk167 / tk167 / tk167



TKA37 / tka47 / tka67 / tka77 / tka97 / tka [[27 / tka157 / tka167 / tka187

Tkf37 / tkf47 / tkf57 / tkf77 / tkf87 / tkf97 / tkf107 / tkf127 / tkf167 / tkf187

TKAF37 / TKAF47 / TKAF67 / TKAF77 / TKAF87 / TKAF107 / TKAF15 / TKAF167 / TKAF167

FK37, FK47, FK57, FK67, FK77, FK77, FK87, FK97, FK107, FK127, FK167, FK187, FK167

FKA37, FKA47, FKA57, FKA67, FKA77, FKA77, FKA87, FKA97, FKA107, FKA127, FKA167, FKA187, FKA187

FKF37, FKF47, FKF47, FKF67, FKF77, FKF87, FKF97, FKF107, FKF125, FKF167, FKF187, FKF187

FKAF37, FKAF47, FKAF57, FKAF67, FKAF77, FKAF87, FKAF107, FKAF127, FKAF157, FKAF167, FKAF187
